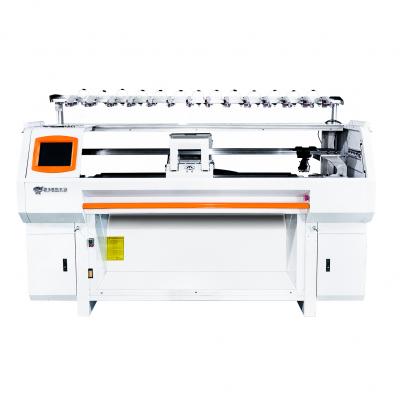

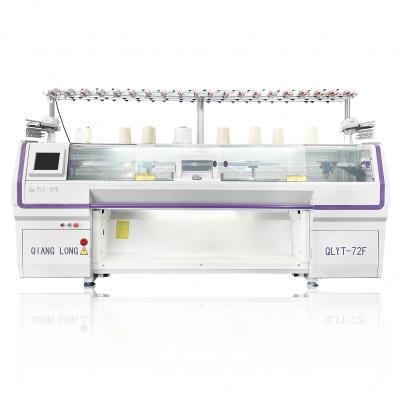

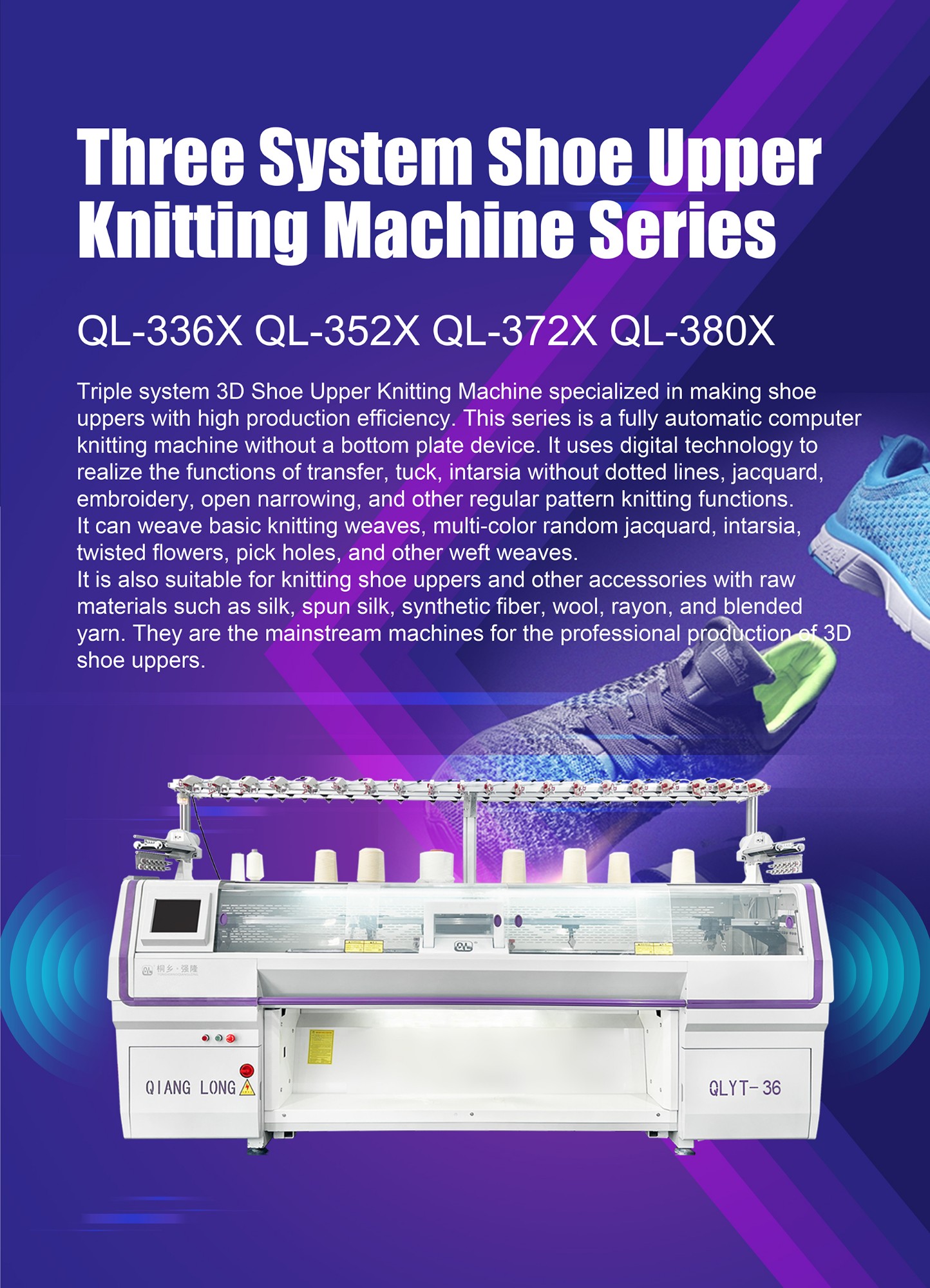

Three System Shoe Upper Knitting Machine Series

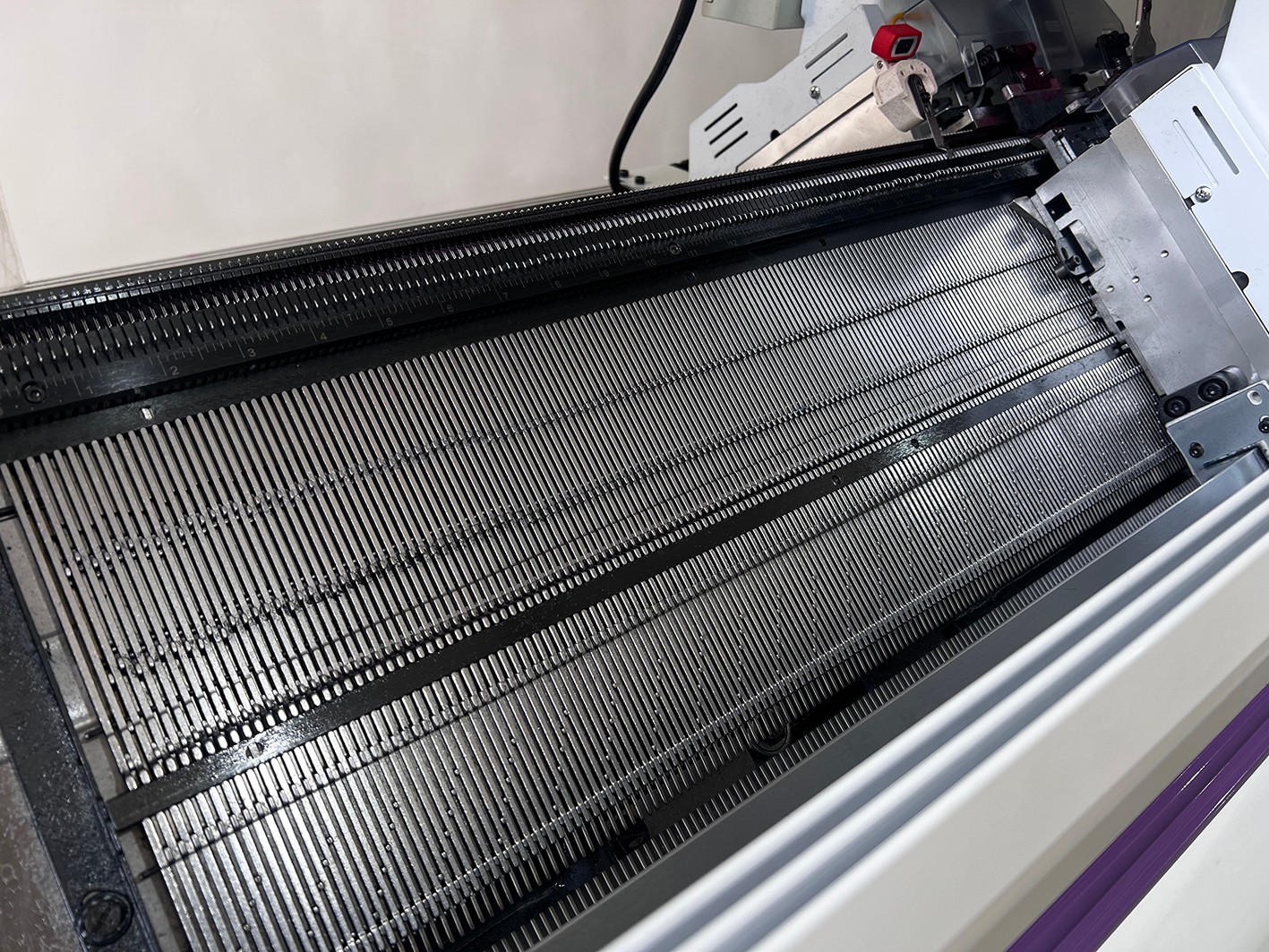

Gauge

14G、18G

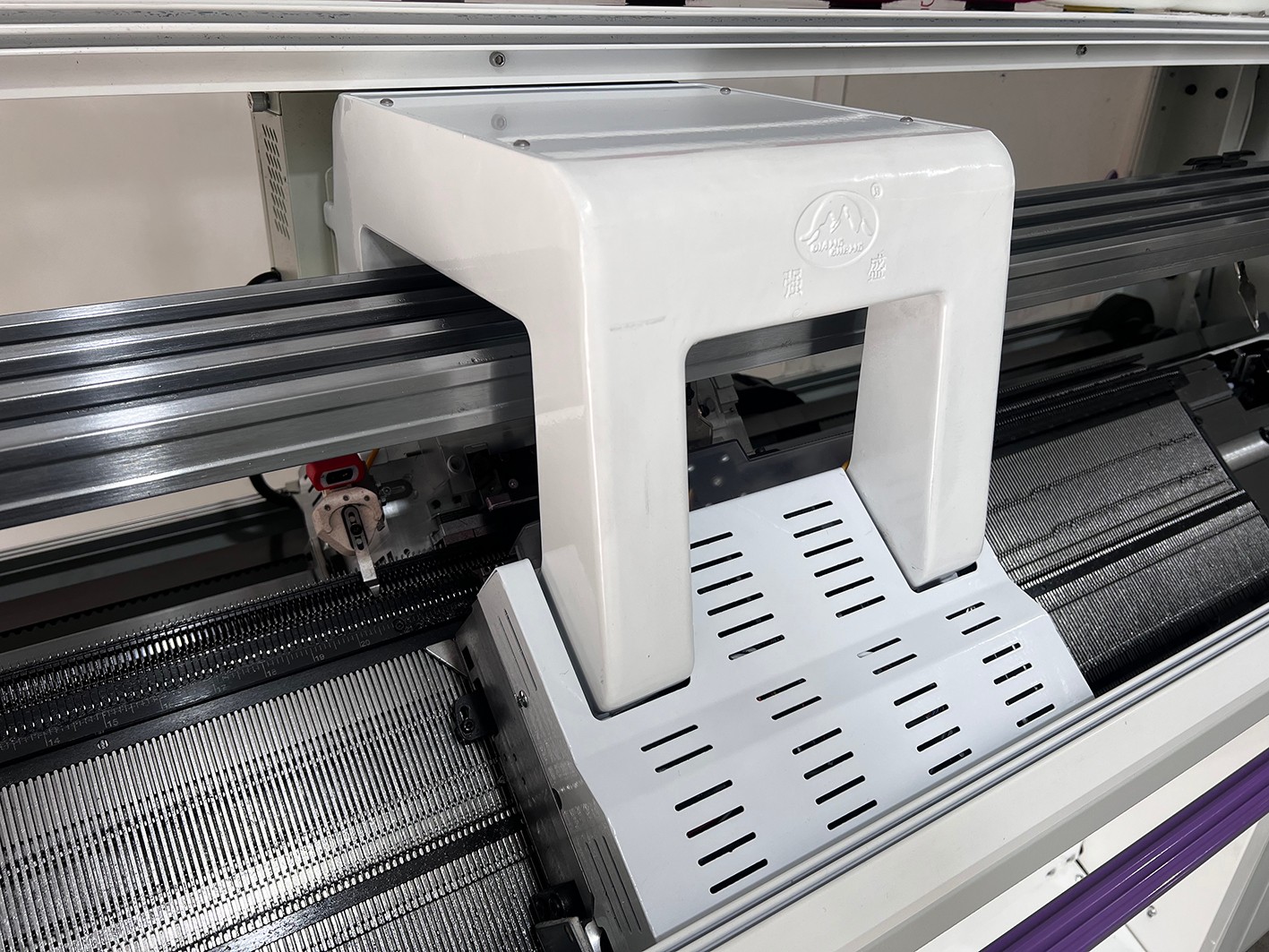

Carriage

Single carriage with the three system

Knitting range

36"/52"/72"/80"

Knitting system

Single carriage with the three system

Knitting speed

Maximum speed is 1.8 m/s without load, with 128 sections of programming speed

Stitch density

128 sections electronic control, using subdivision technology; The stepping motor controls and adjusts the density, and the adjustable range is 0-650

Dynamic stitch

It is realized by a high-speed stepper motor, which supports the realization of multi-segment variable mesh control within a row of patterns, and the realization of a variety of fabric densities in the same line Weaving, rich weaving patterns.

Transfer

Can be turned back and back at the same time, not affected by the nose direction, minute knitting.

Racking system

Motor drive，1/2 and 1/4 needle in any position; Maximum 2 inches on one side.

Sinker

By using the control principle of the cross sinker, more lines of local braiding can be carried out, which plays a positive role in the braiding of complex tissues. Independent signal， subsystem control.

Presser device

One set of presser feet(optional)

Take-up device

128 sections of automatic control, time division adjustment, can be automatically identified according to the width of the pattern automatically adjust the tension, can meet a lot of local weaving, The pulling force requirement of the pattern makes the pulling force of the fabric evenly distributed and the strength is reliable.

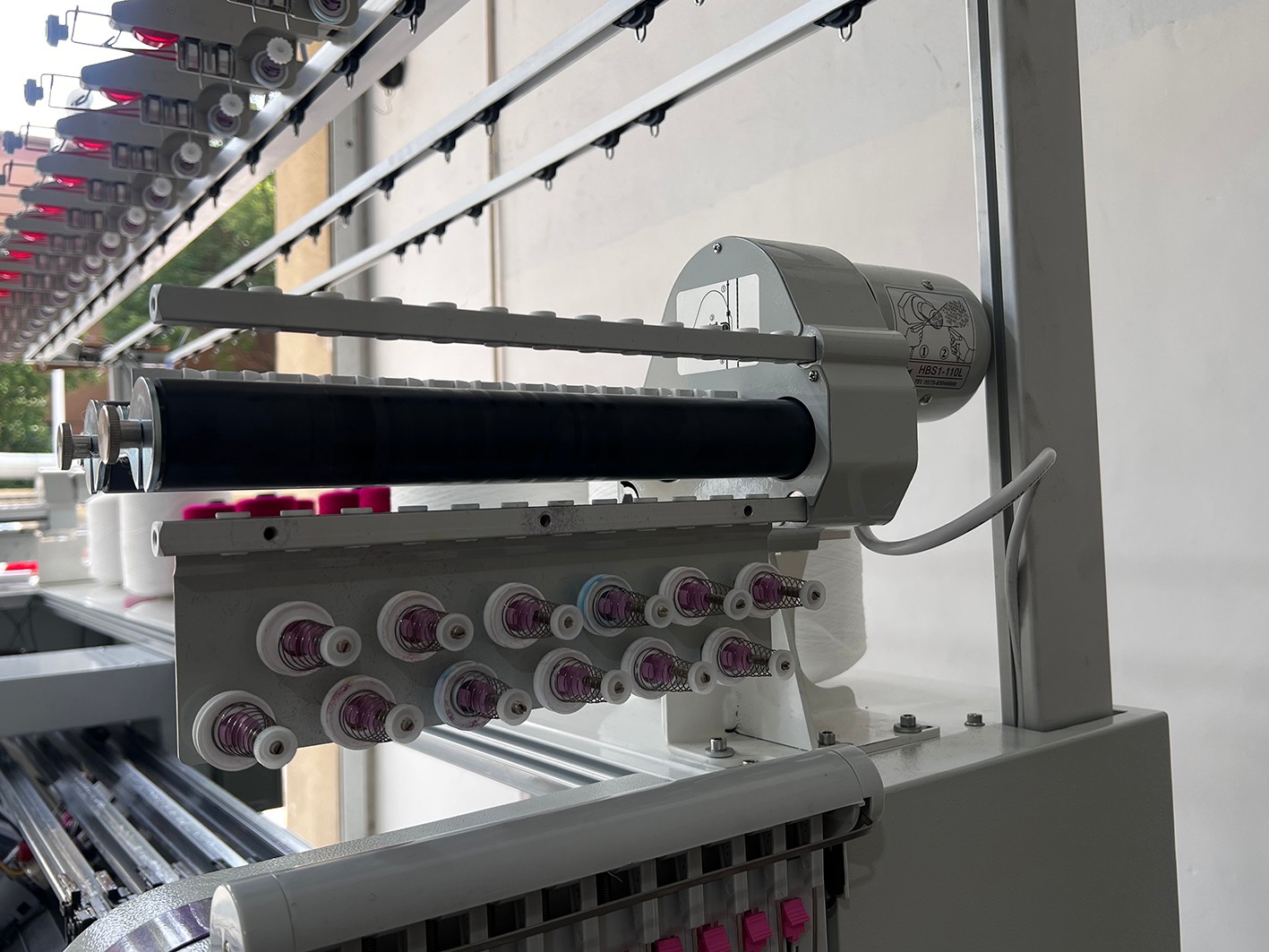

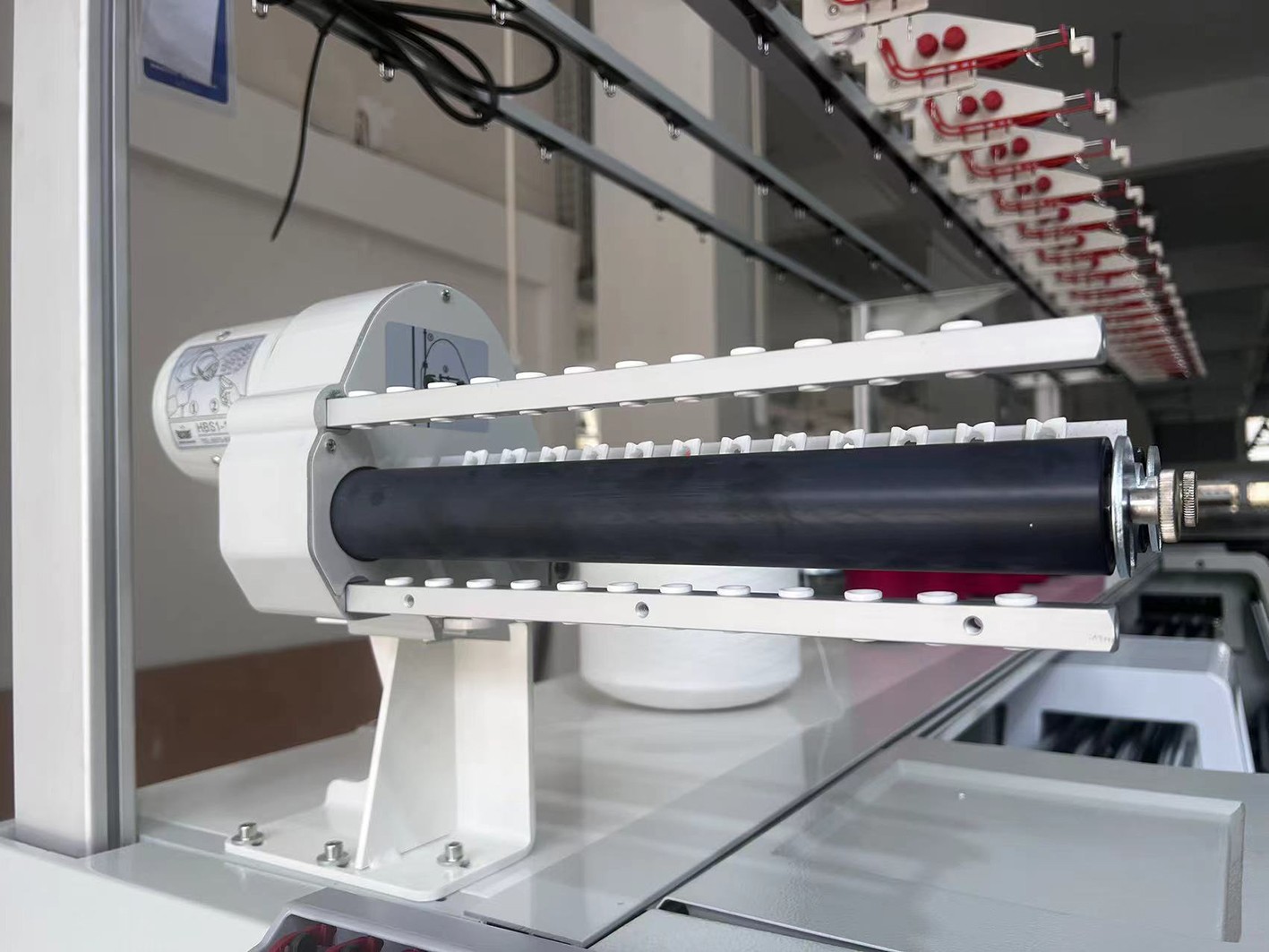

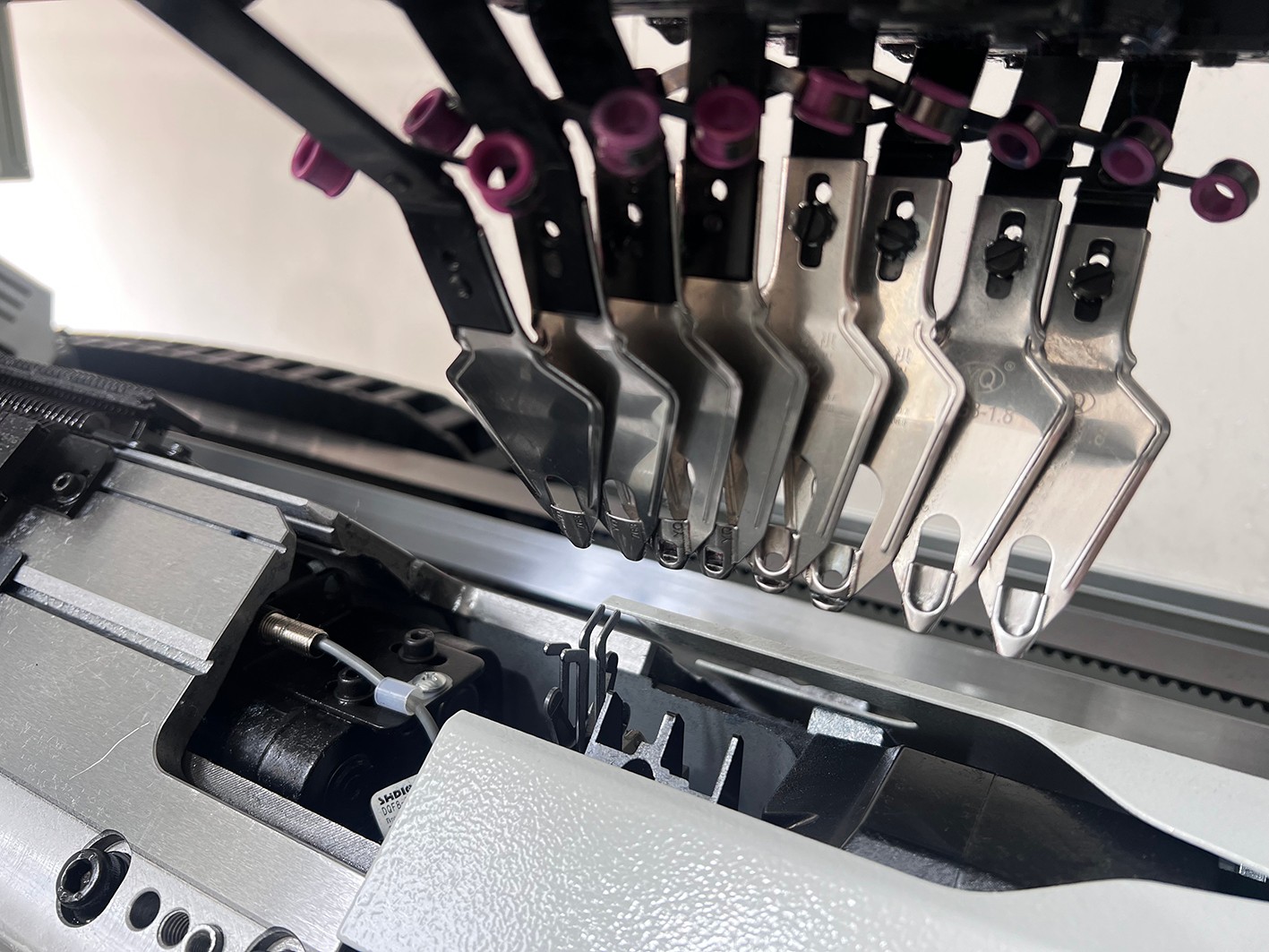

Yarn feeder device

The roller feeding device can precisely control the tension of the yarn and ensure the consistency of the whole fabric quality.

Safety device

The whole machine is covered to reduce noise and dust. infrared safety device, emergency stop device, cut off the power device., indicator light alarm device.

Refueling device

Automatic refueling: control the refueling time and frequency by setting the time. After the time is up, lubricate the long needle spring needle on the needle plate automatically to reduce the wear of the machine and increase its service life.

 Stop motion

Automatic stop for yarn breaking, yarn knot, fabric rewinding, firing pin, number of pieces completed, overload, program error, etc

Control system

The screen uses LCD industrial display, a touch screen graphical interface transmission mode uses USB and a network, which can be used to store a large number of pattern files and be called out and used at any time according to production needs. Monitoring screens display all kinds of working parameters and knitted mesh values, and they can be adjusted at any time when the machine is running, which is convenient for operation and time saving to the greatest extent. Plate-making system and control system (software part)SH upgrade is convenient. Support a variety of lower format CNT, HCD,000. etc. Support for multi-language operating versions (Chinese, English, Russian, and other languages)

 Data input

Input data through a USB flash drive or computer connection

Blackout memory function

Advanced CMO technology is adopted to realize blackout memory and call recovery weaving functions.

Network function

A high-speed ETHERNET network theoretically enables unlimited computer connection, data uploading and sharing, and real-time monitoring.

Power supply unit

Voltage: AC 220V/380V; Frequency: 50HZ/60HZ; Power: 1.5KW

Size and weight of the machine

QL-352X14G ( Size:2600*800*1700MM; Weight around：880KG)
