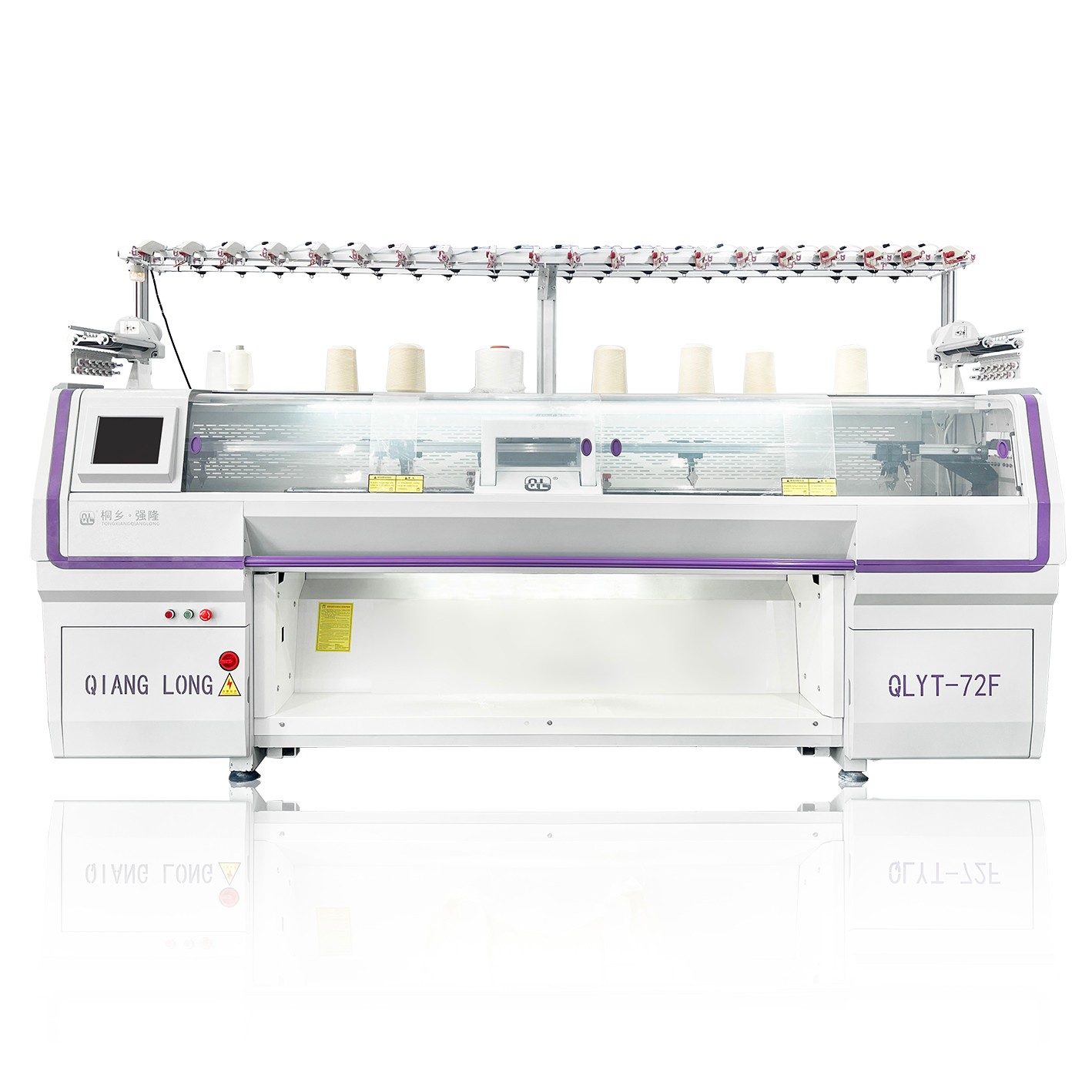

Multifunctional Computerized Flat Knitting Machine
Model NO.:
QYTL-72F QLYT-86F
The Device for Laying Down Fabric: The Spring-type intelligent moveable sinkers, this function can replace the function of the market rake, so as to effectively control the local tension of the cloth, this function is convenient to maintain, can greatly reduce the broken needle caused by the floating yarn.
Braiding Design: Optimize weaving, part shovel 60+ needles, deeper necklines 12cm+ with better control over flechage, drum wave 4cm+, to solve the difficulty of deeper necklines limitation.
Cost: Capacity improvement, energy consumption reduction, cost recovery faster, more complete function, car without worry, welcome to sample to buy, carry the bag, a variety of financial ways.
Model | QLYT-72F QLYT-86F |
Gauge | 57G、12G、14G、18G、20G、24G、28G |
Needle Selector(optional) | 8-stage electronic needle selector, 10 section needle selection |
Machine Speed | Maximum speed is 1.4 m/s, The knitting speed varies with the number of needles and knitting condition, and the speed can be adjusted arbitrarily |
Knitting System | Single carriage triple system |
Racking System | Two racking systems, Servo motor precise control, needle moving range up to 2 inches |
Stitch | High speed stepper motor control, with moving function, can be set arbitrarily |

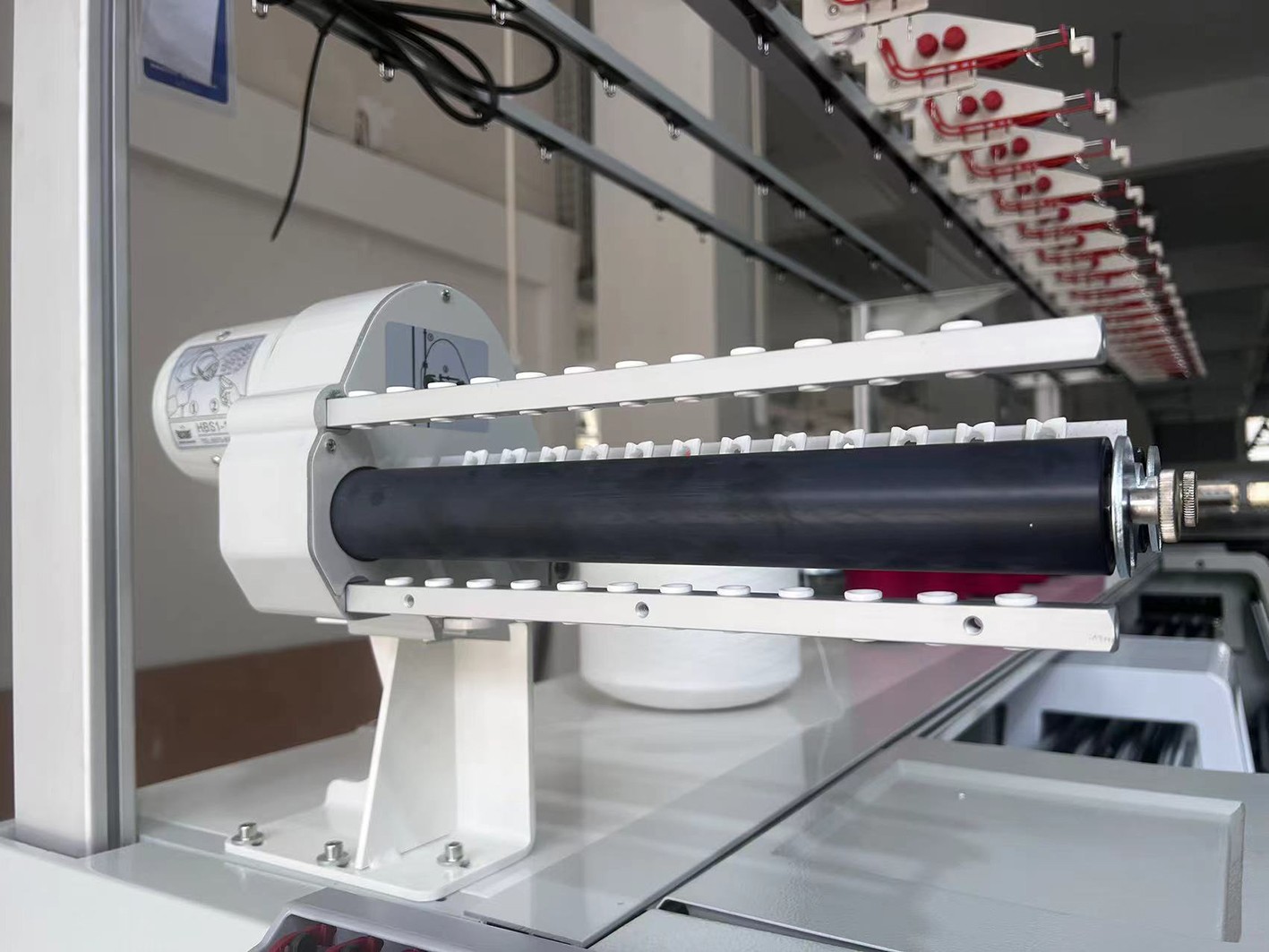

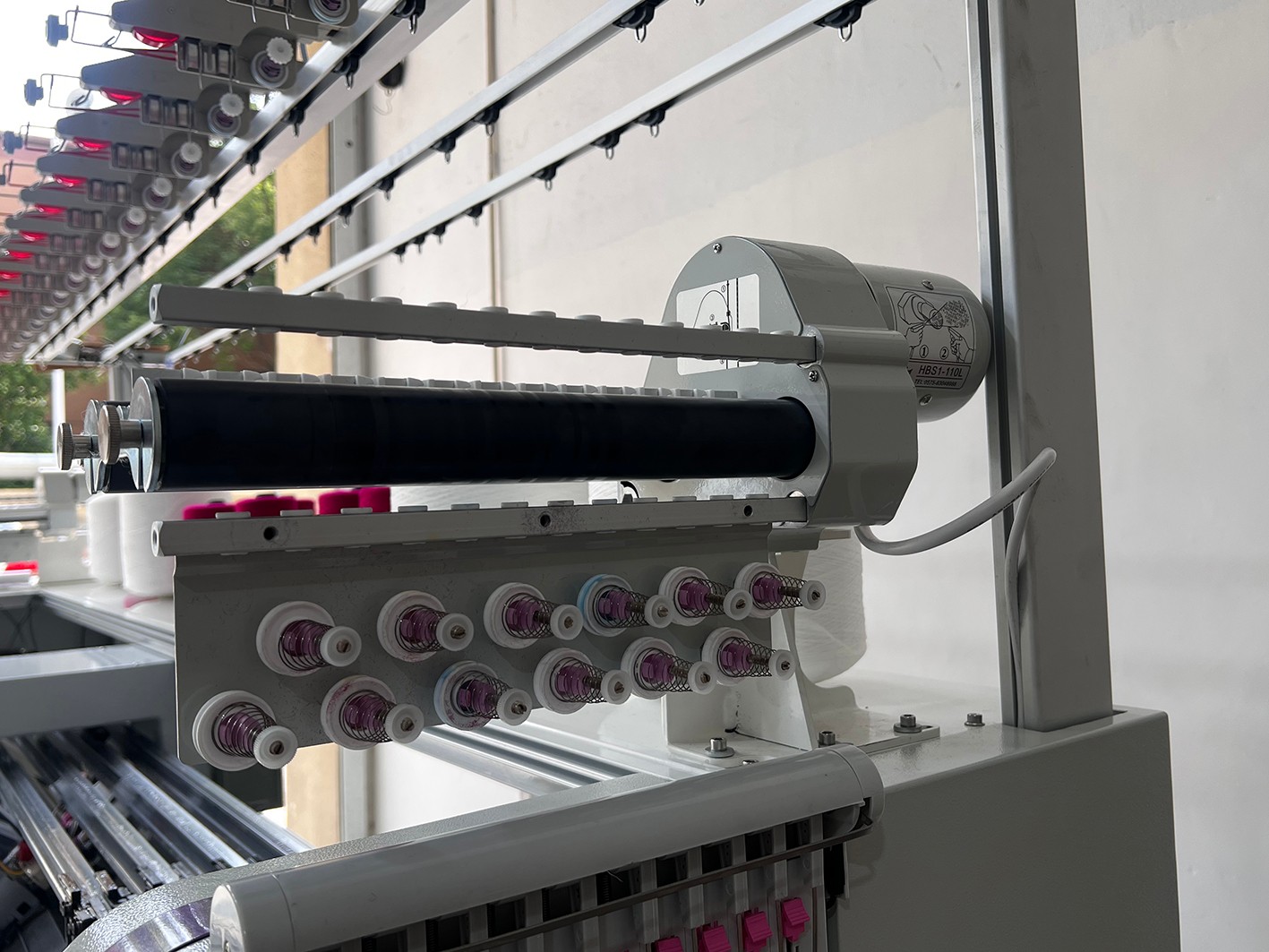

Drawing Device | The Spring-type multifunctional moveable sinkers, Comb(Optional),double roller motor |
Motor Reversing | Motor connecting rod reversing with the selection of needle avoidance, optimization of servo,to achieve rapid and stable head reversing |
Winding Table | Sunken winding table. In case of large knot, the machine will stop. In case of small knot, the machine will drop to the speed when detecting errors, and automatically restore the original speed after weaving the 0-99 lines set by itself. |

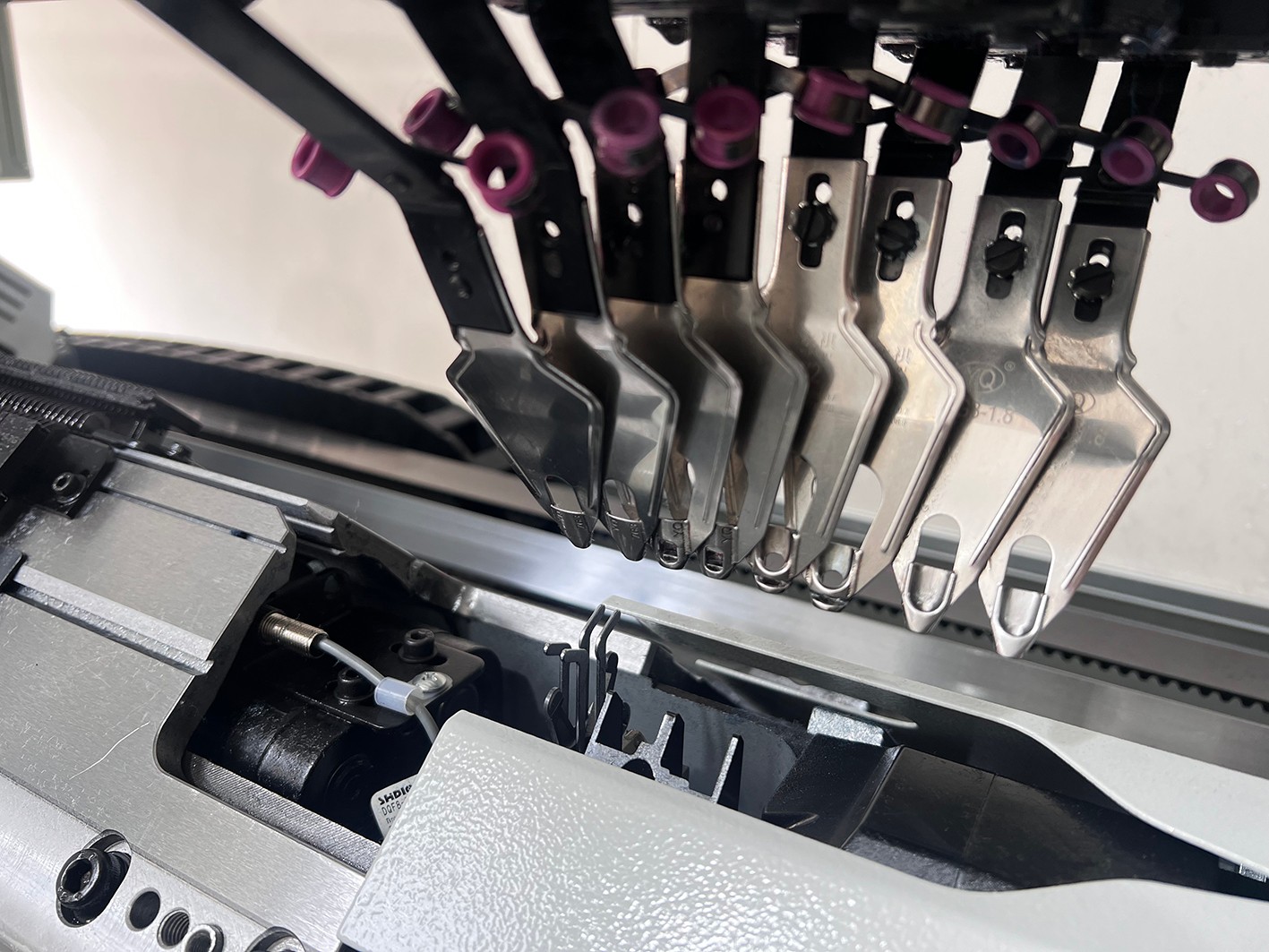

Color Changing System | Motor color change, smart running color change (optional) |
Automatic Shutdown | In case of broken yarn, large knot, roll cloth, firing pin, piece number completed, overload, program error and so on, machine can automatic stop. |
Safety Device | Safety cover to prevent dust and reduce noise. At the same time, emergency stop switch and emergency power cut-off device are configured |
Size and Weight of Machine | 72”3350mm* 780mm* 2010mm N.W.1260 KGS |
Power Supply Unit | Voltage: AC 220V/380V Frequency: 50HZ/60HZ Power: 1.5KW |
Specifications And Configurations Should Be Subjected To The Contract.
